Dog Point Socket Set Screw

DIN 915
Grade 45H
(coarse series only)


  1. Material — high grade alloy steel.
  2. Hardness — Rockwell C45 minimum (alloy)
  3. Corners of recess must have fillets to minimize stress concentrations.

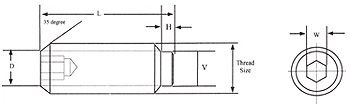

Dimensions

Application data

Nom.



D

H

Max

L

V

W

Recommended

Seating

Tap

Thread





Short

Long

Min.





Torque

Drill

Size

Pitch

Max.

Length

Length

Preferred

Max.

Nom.

N-m

inch-lbs.

Size

M3

0.5

2.10

1.05

2.40

5.0

2.00

1.5

0.6

5.0

2.5

M4

0.7

2.75

1.20

2.80

5.0

2.50

2.0

2.0

18.0

3.3

M5

0.8

3.70

1.20

2.80

6.0

3.50

2.5

4.0

35.0

4.2

M6

1.00

4.35

1.25

3.15

6.0

4.00

3.0

7.0

62.0

5.0

M8

1.25

6.00

1.90

4.50

8.0

5.50

4.0

17.0

150.0

6.75

M10

1.50

7.40

2.00

4.90

8.0

7.00

5.0

34.0

300.0

8.5

M12

1.75

8.60

2.70

6.25

12.0

8.50

6.0

60.0

530.0

10.25

M16

2.00

12.35

3.55

8.15

16.0

12.00

8.0

150.0

1325.0

14.0

M20

2.50

16.00

3.25

7.85

20.0

15.00

10.0

300.0

2650.0

17.5

M24

3.00

18.95

3.95

9.65

22.0

18.00

12.0

475.0

4200.0

21.0
